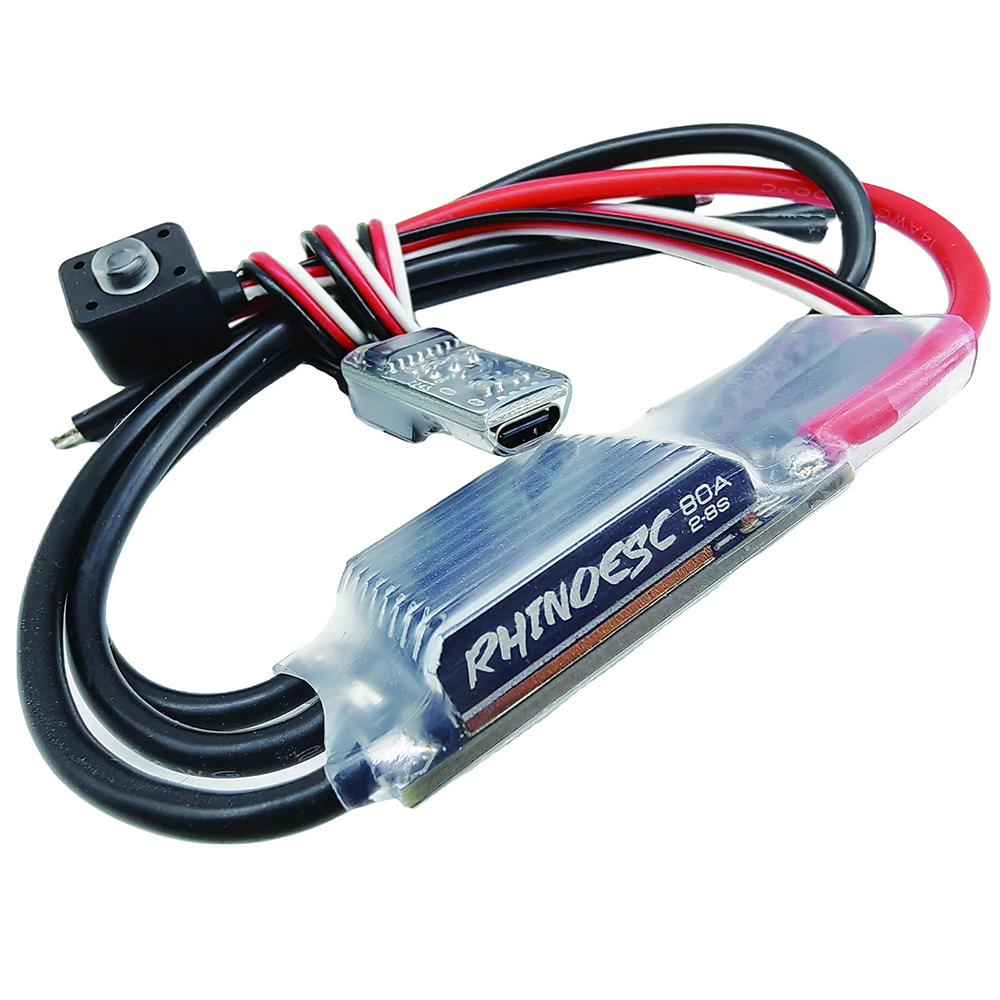

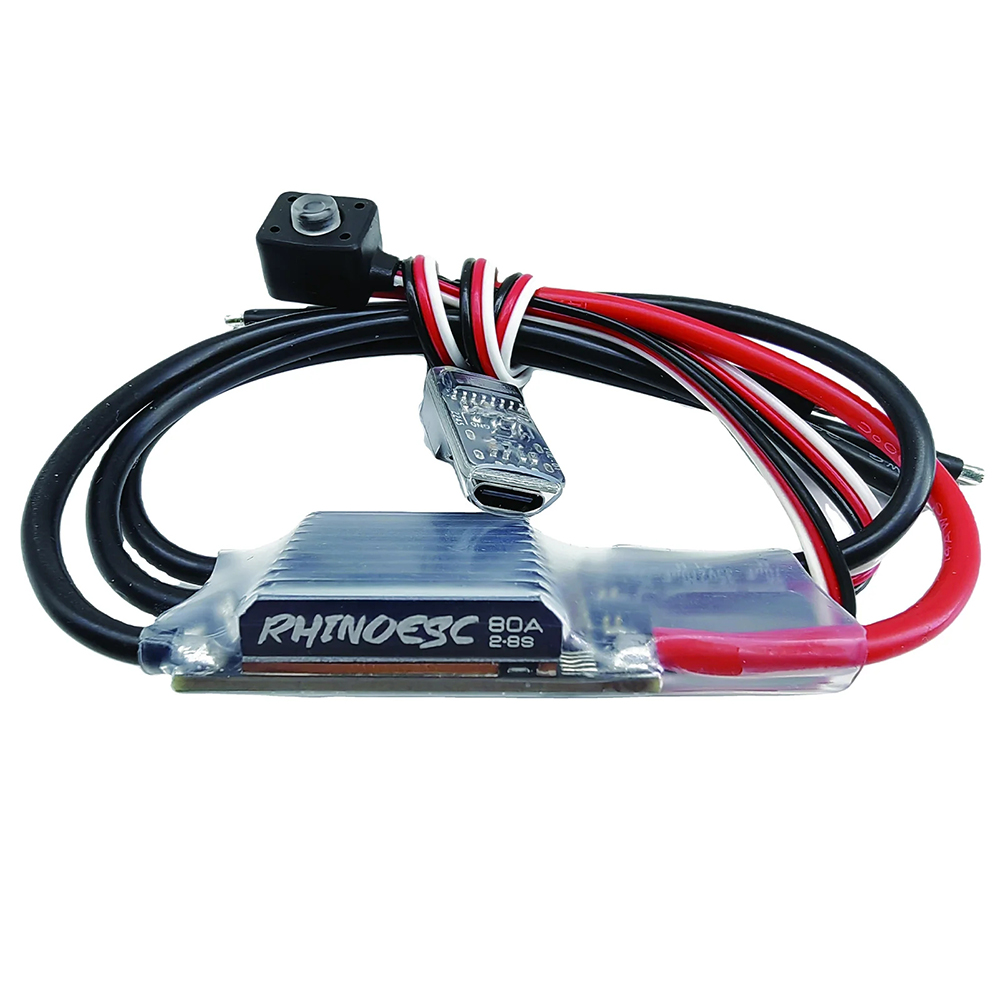

RhinoESC AM32 Crawler ESC 80A 2-8S BEC 5.2-8.2V for Scale 1/8 1/10 Crawler Cars Axial SCX10 TRX4 TRX6 RC Car Parts
132,20 €
- Description
- Additional information
- Reviews (0)
- Vendor Details
- Product Inquiry
Description

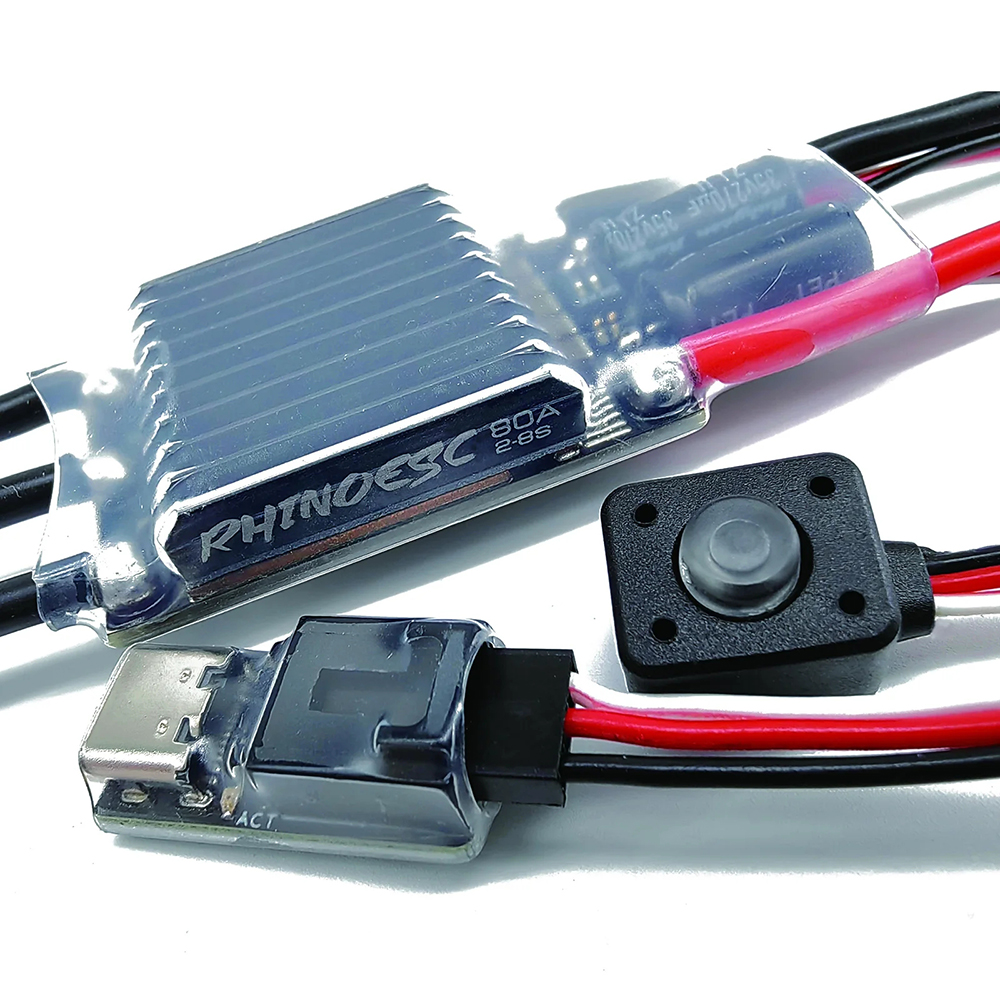

This ESC preloaded AM32 custom firmware. It’s optimized for crawler and makes your car run super smooth and quiet, but it is also suitable for a variety of 1/8 scale or smaller cars. A built-in adjustable four voltage BEC with a maximum current 10A to apply the high torque servo. In addition, the e-Switch that comes with it avoids failures caused by harsh environments.
All wires are pre-soldered.
Feature:
AM32 custom firmware
Sinewave startup allows the motor smoothly at ultra-low speeds Variable drive frequency
Low voltage, throttle loss and stalled rotor protection
High-performance 32-bit MCU
E-switch with long life and waterproof

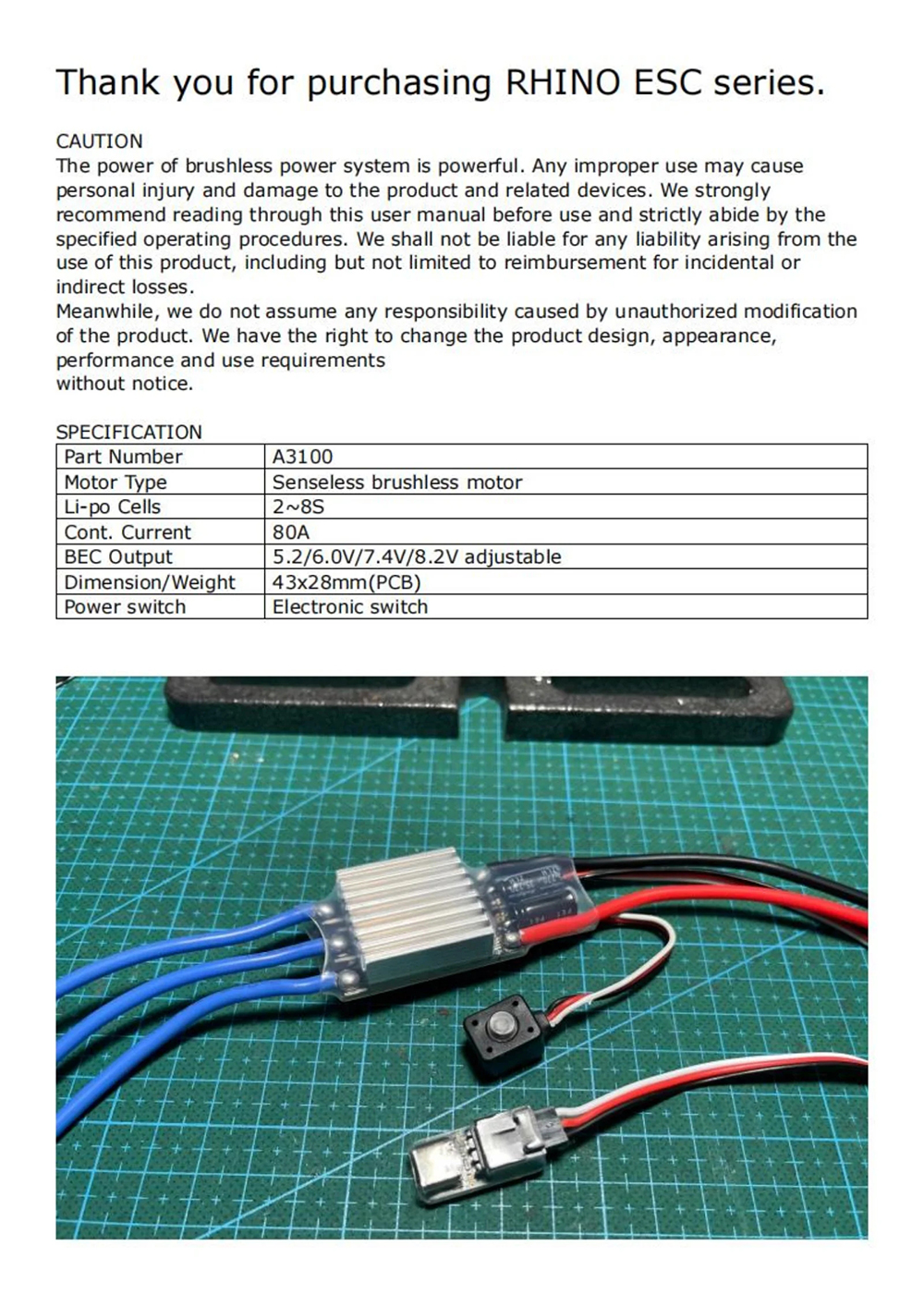

Specs:
Product Num.: A3100
Battery: 2~8S Lipo
Current: 80A cont.

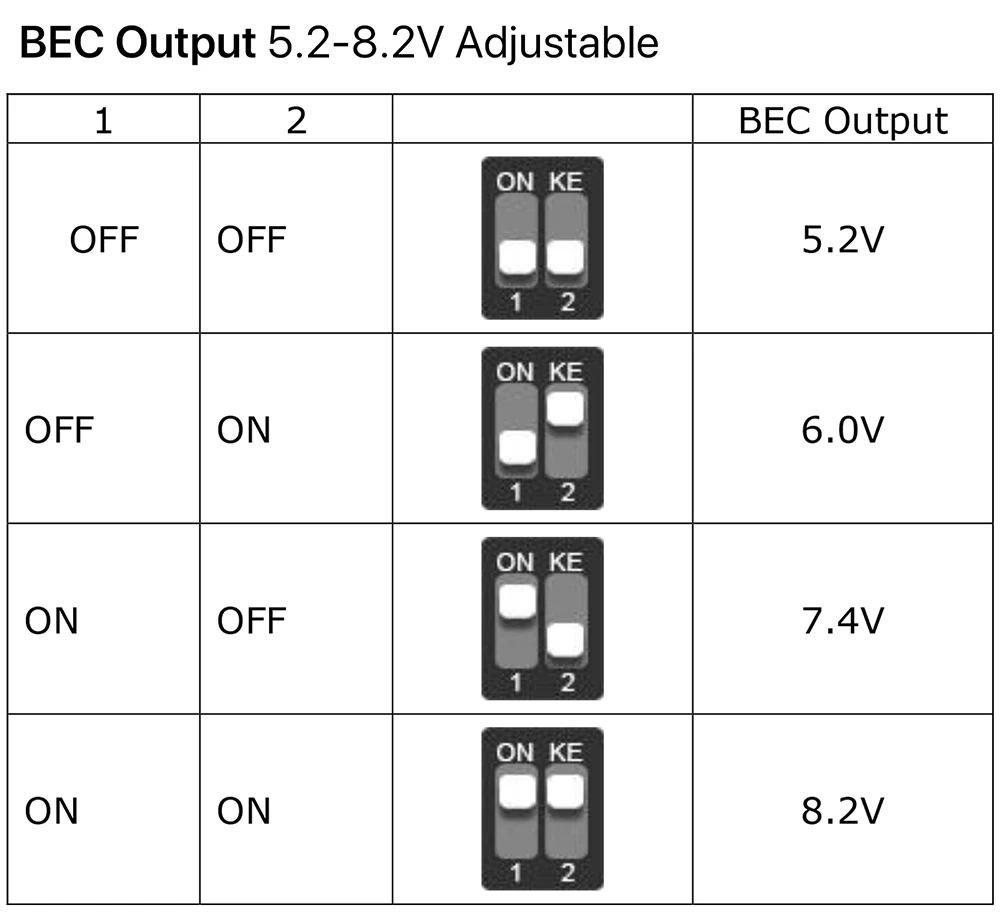

BEC: max 10A, output 5.2~8.2V adjustable by DIP switch
Waterproof: ESC not supported / e-switch supported
FAN: not include, solder pads for power is reserved
Connectors: not include
Wires: battery 14AWGx150mm, output 14AWGx150mm, signal 250mm and e-switch 120mm
Dimensions: 60x29x15mm (without wires)

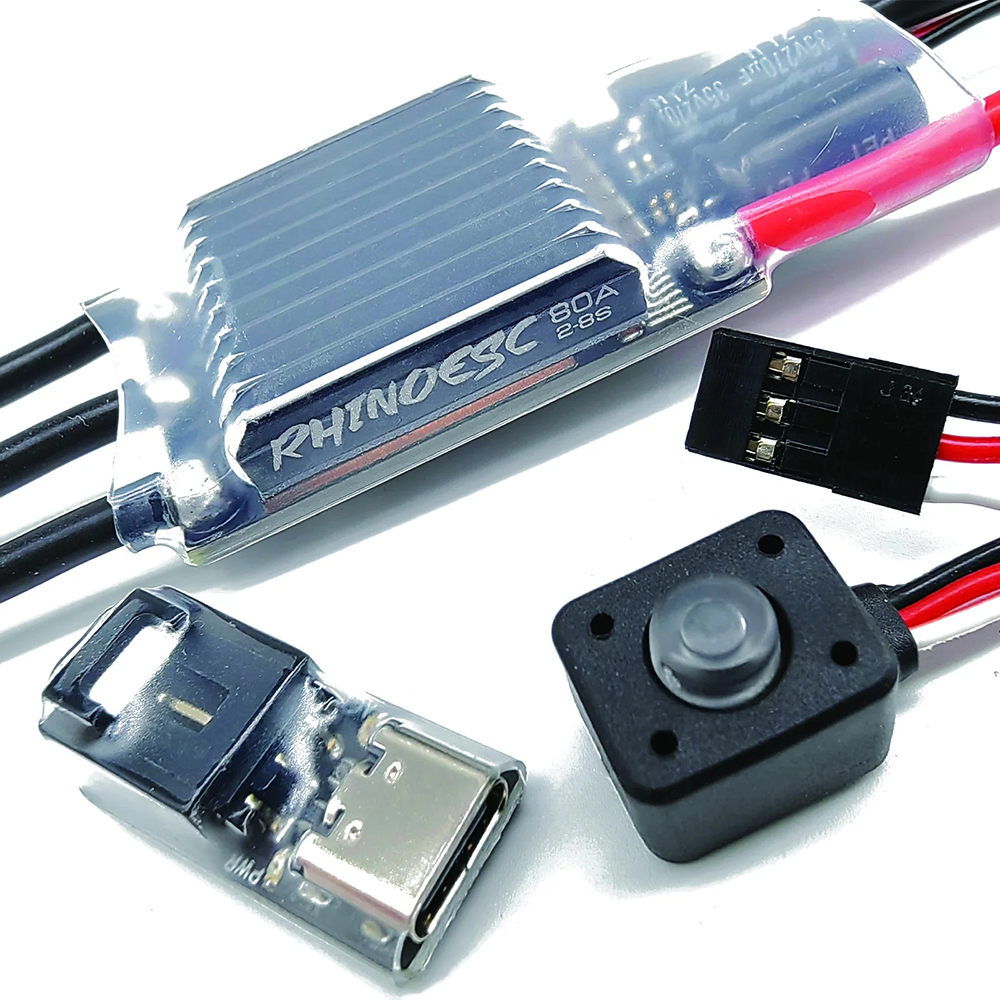

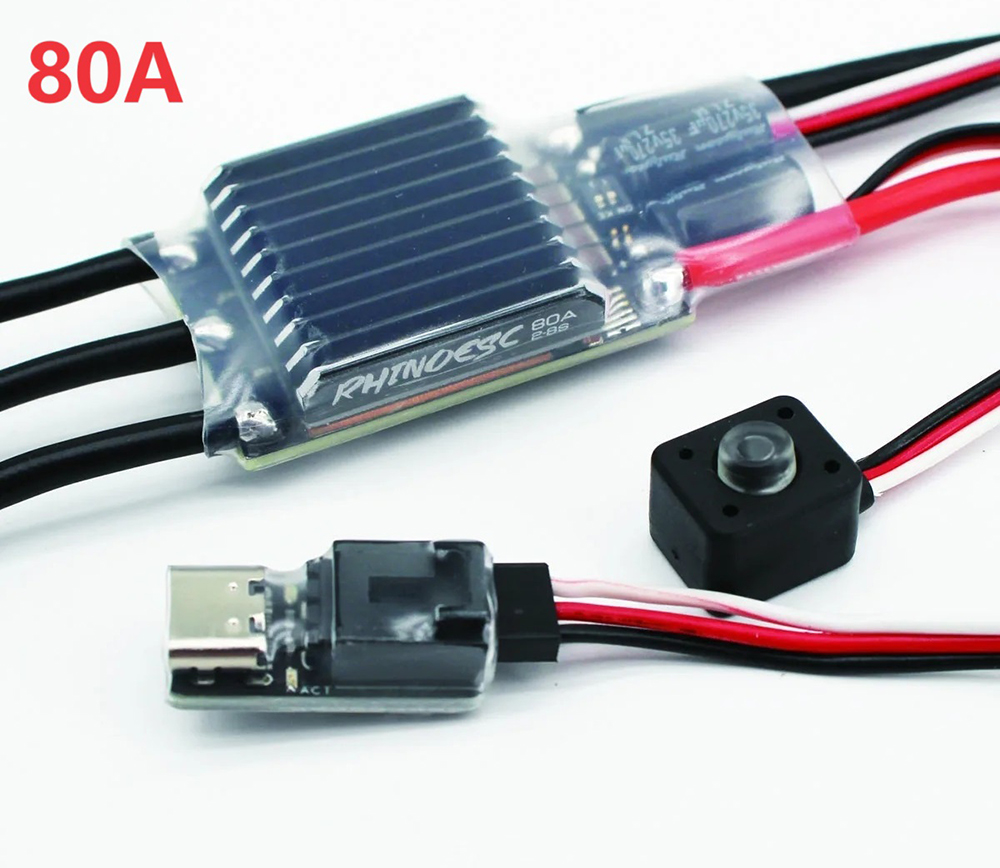

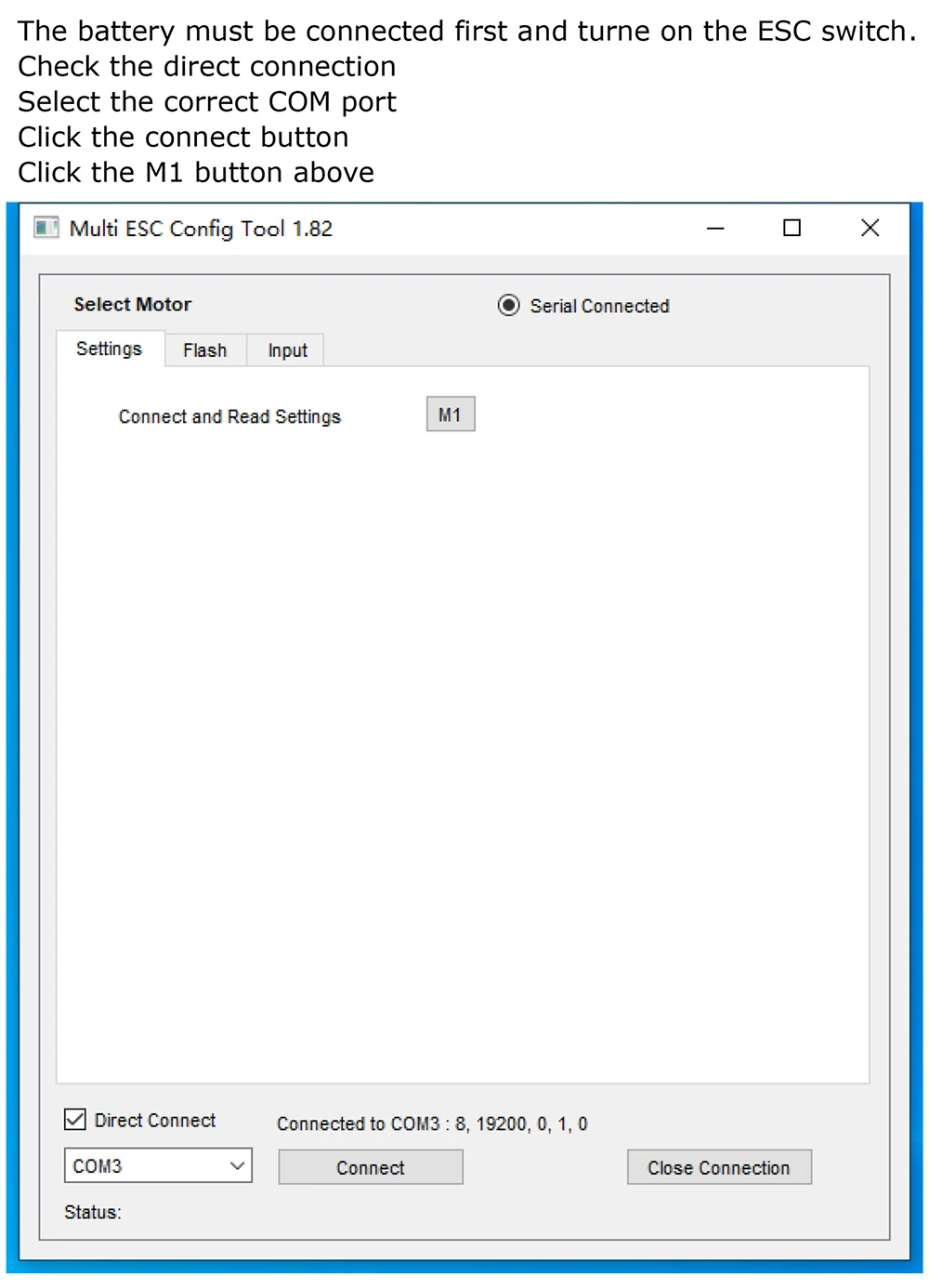

USB-Link:

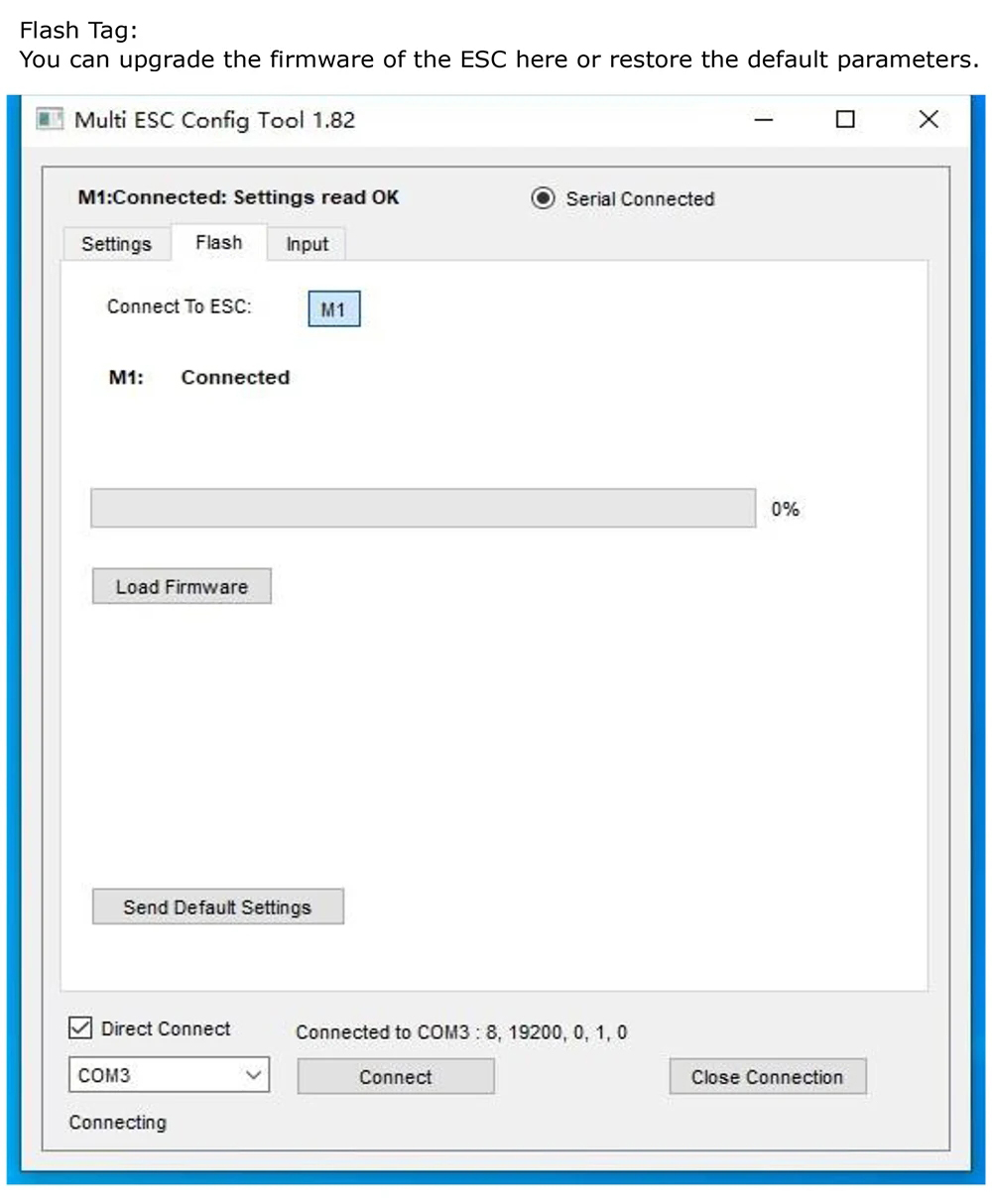

Suitable for a variety of ESCs, such as AM32/BL32, etc., connect ESC to computer for configuration or upgrade firmware.
It is portable and easy to use, just connect the ESC signal plug, connect the USB Type-C cable to the computer and install the VCP driver.
Package Included:
1x Rhino ESC AM32 Crawler ESC 80A
Additional information

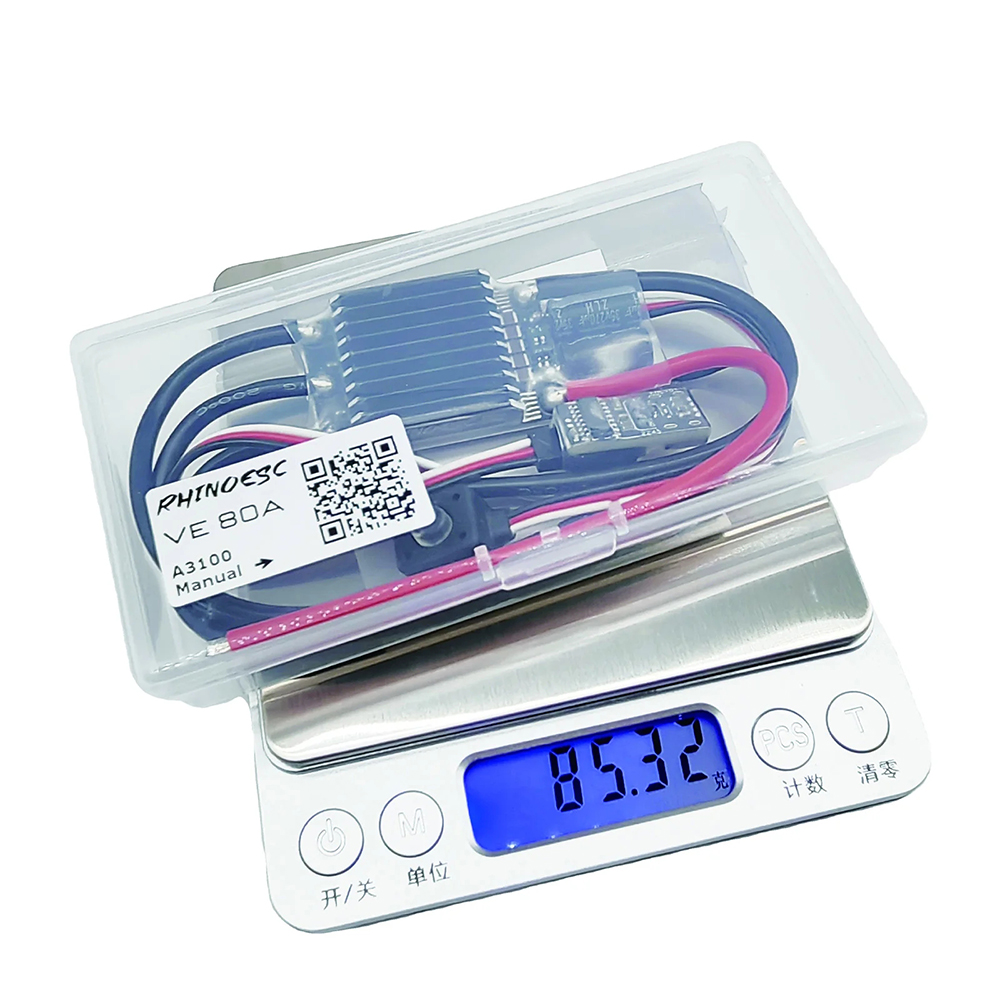

| Weight | 0,088 kg |
|---|
