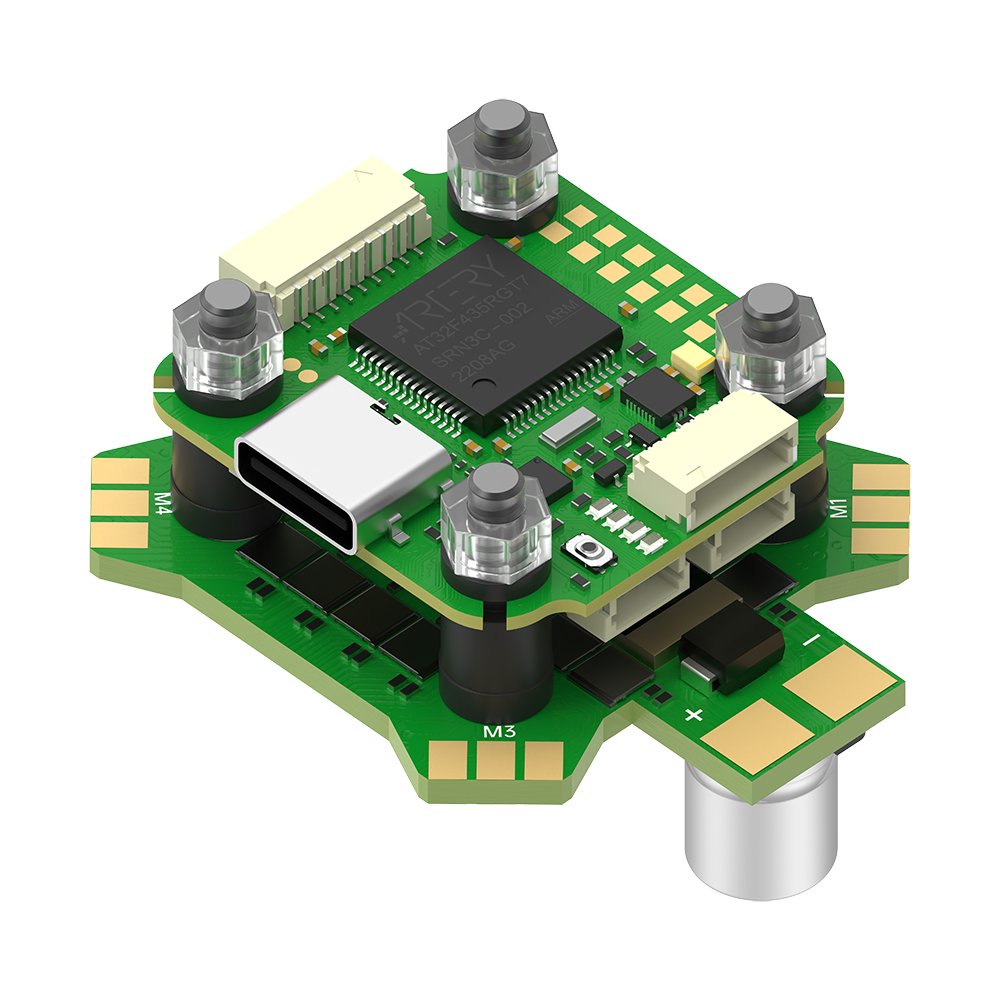

iFlight BLITZ Mini ATF435 Stack Flight Controller OSD with 5V BEC E55S Mini 55A 2-6S 4IN1 ESC for Nazgul Evoque F4 FPV Racing Drone

iFlight BLITZ Mini ATF435 Stack Flight Controller OSD with 5V BEC E55S Mini 55A 2-6S 4IN1 ESC for Nazgul Evoque F4 FPV Racing Drone

0 out of 5
( There are no reviews yet. )

46,56 €

Shipping

Availability: 2 in stock Category: Vendor: RC&Robots

Description

FC Specifications:


BLITZ Mini ATF435 Flight Controller

MCU: AT32F435RGT7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27mm
Weight: 5g
BEC: 5V 2.5A

Wiring Suggestion

UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
BLITZ E55S Mini  Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Telemetry Output: No
Current sensor: Yes
Current rate: 300
BEC: No
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)

Packing List:

Flight Controller Version 1 x BLITZ Mini ATF435 Flight Controller
Brushless ESC Version 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
FC & ESC Version 1 x BLITZ Mini ATF435 Flight Controller
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires

Additional information

Weight 0,05 kg
Model

Flight Controller
