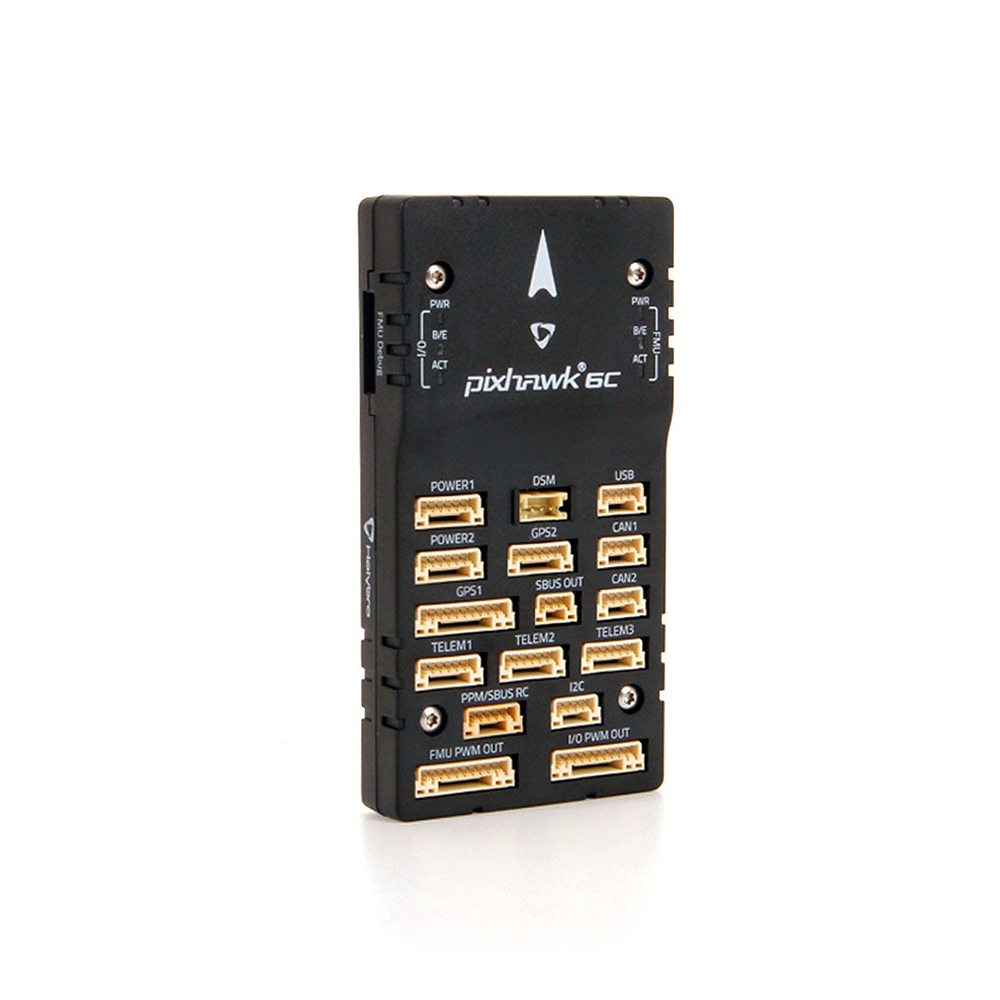

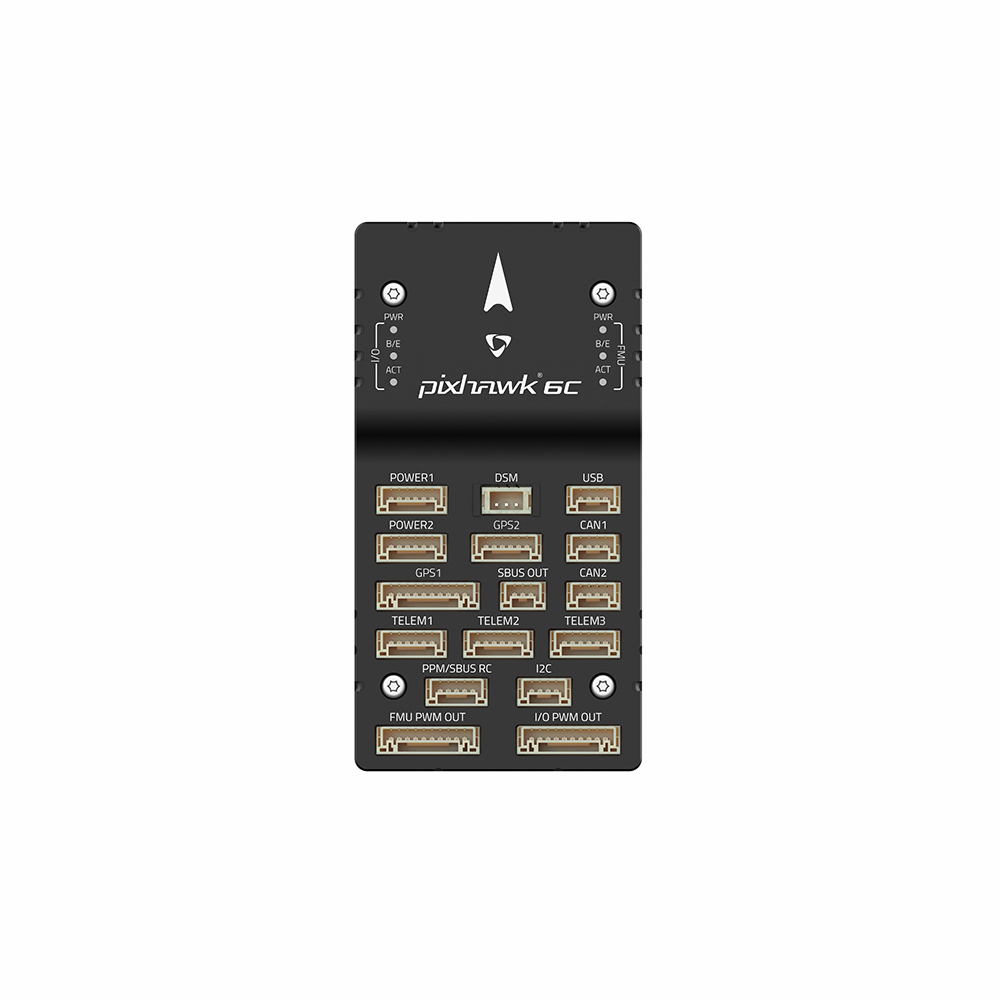

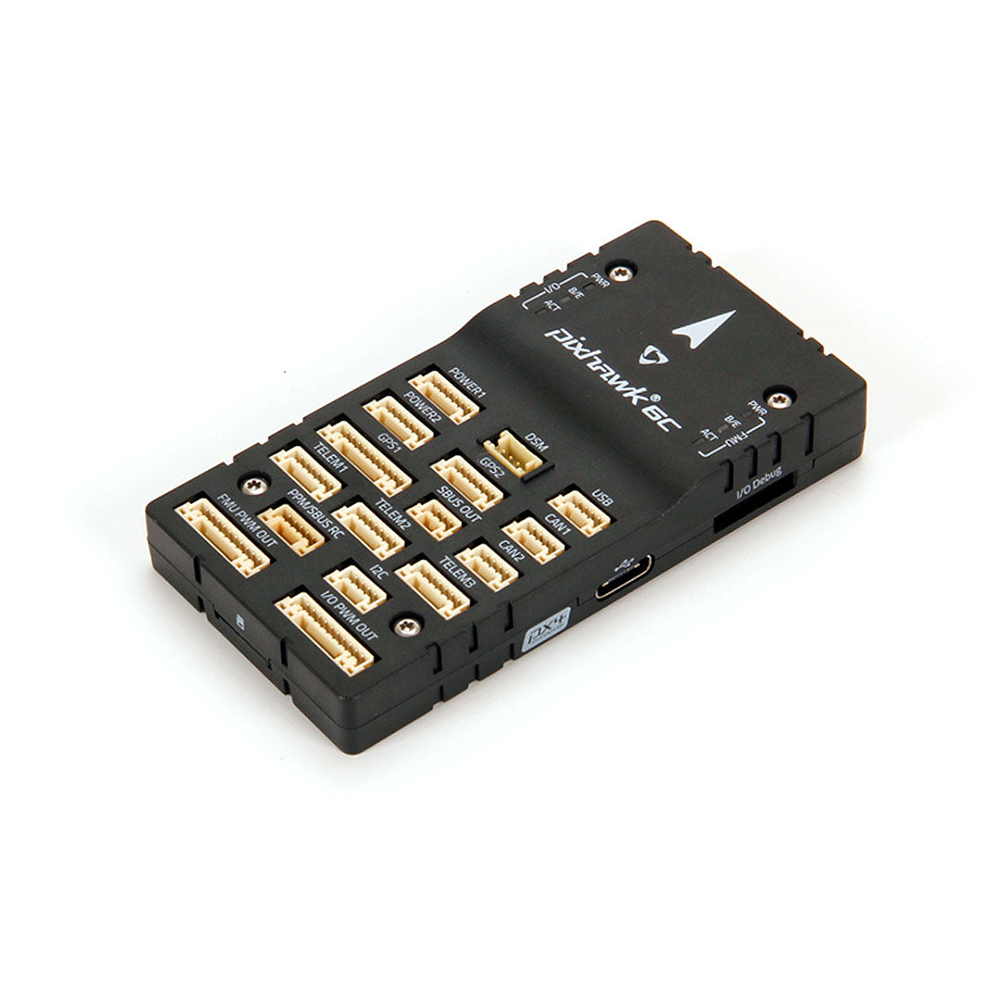

Holybro Pixhawk 6C PX4 Flight Controller for Multi-Rotor RC Drone
192,76 €
- Description
- Additional information
- Reviews (0)
- Vendor Details
- Product Inquiry
Description
Specifications:
Brand: Holybro
Model: Pixhawk 6C
| Processors & Sensors | FMU Processor: STM32H743 32 Bit Arm® Cortex®-M7, 480MHz, 2MB Memory, 1MB SRAM IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM On-board Sensors Accel/Gyro: ICM-42688-P Accel/Gyro: BMI055 Mag: IST8310 Barometer: MS5611 |
| Electrical Data | Voltage Ratings: Max Input Voltage: 6V USB Power Input: 4.75~5.25V Servo Rail Input: 0~36V Current Ratings: Telem1 Max Output Current Limiter: 1.5A All Other Port Combined Output Current Limiter: 1.5A |

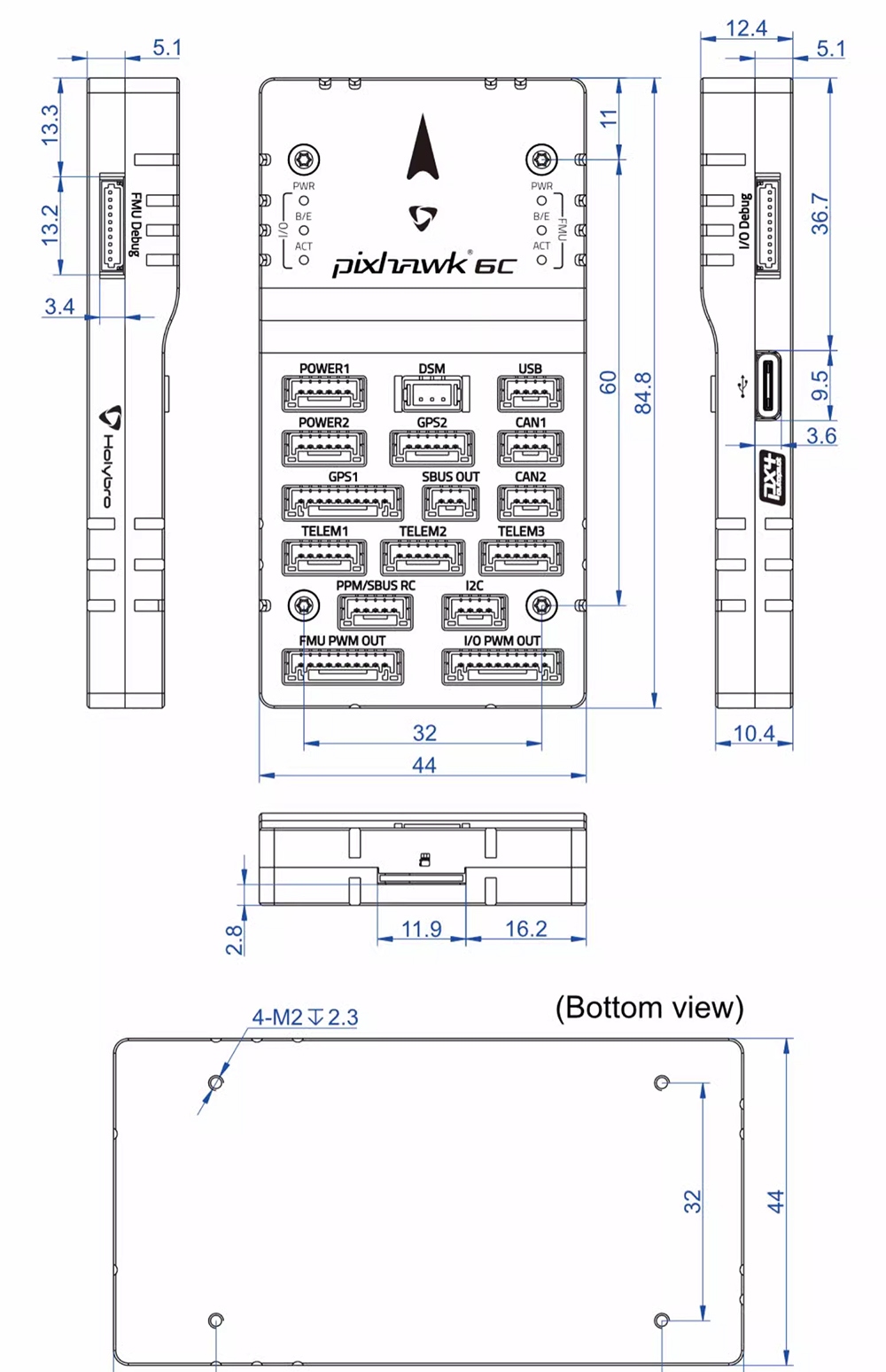

| Mechanical Data | Dimensions: 84.8 * 44 * 12.4 mm Weight (Aluminum Case) : 59.3g Weight (Plastic Case) : 34.6g |
Features:
— High performance H7 Processor with clock speed up to 480 MHz.
— New cost-effective design with low-profile form factor.
— Redundant inertial measurement unit (IMU) from Bosch® & InvenSense®.
— Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings.
— IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs.

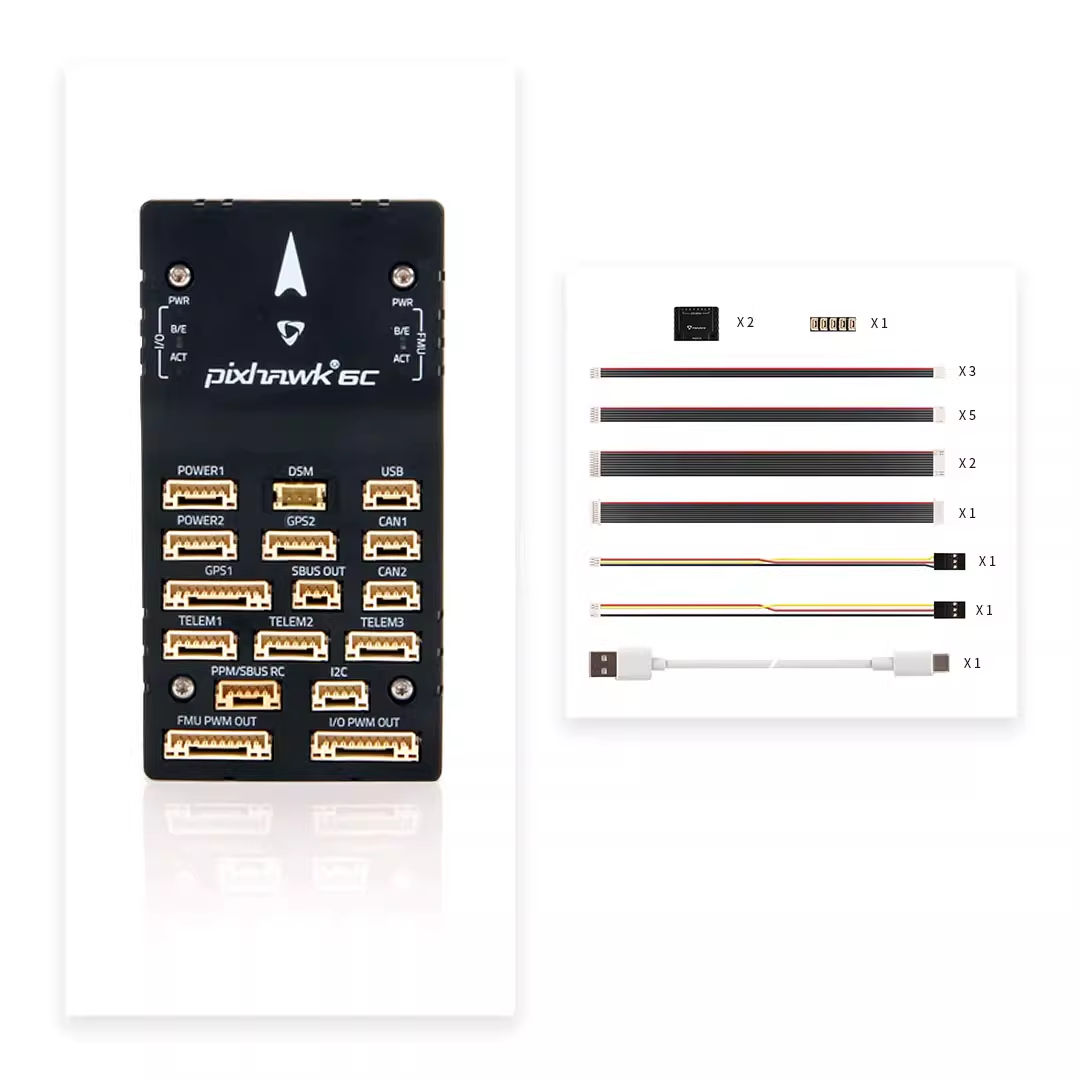

Package Includes:
1 x Holybro Pixhawk 6C PX4 Flight Controller
Additional information
| Weight | 0,3 kg |
|---|---|
| Flight Controller | Plastic |
