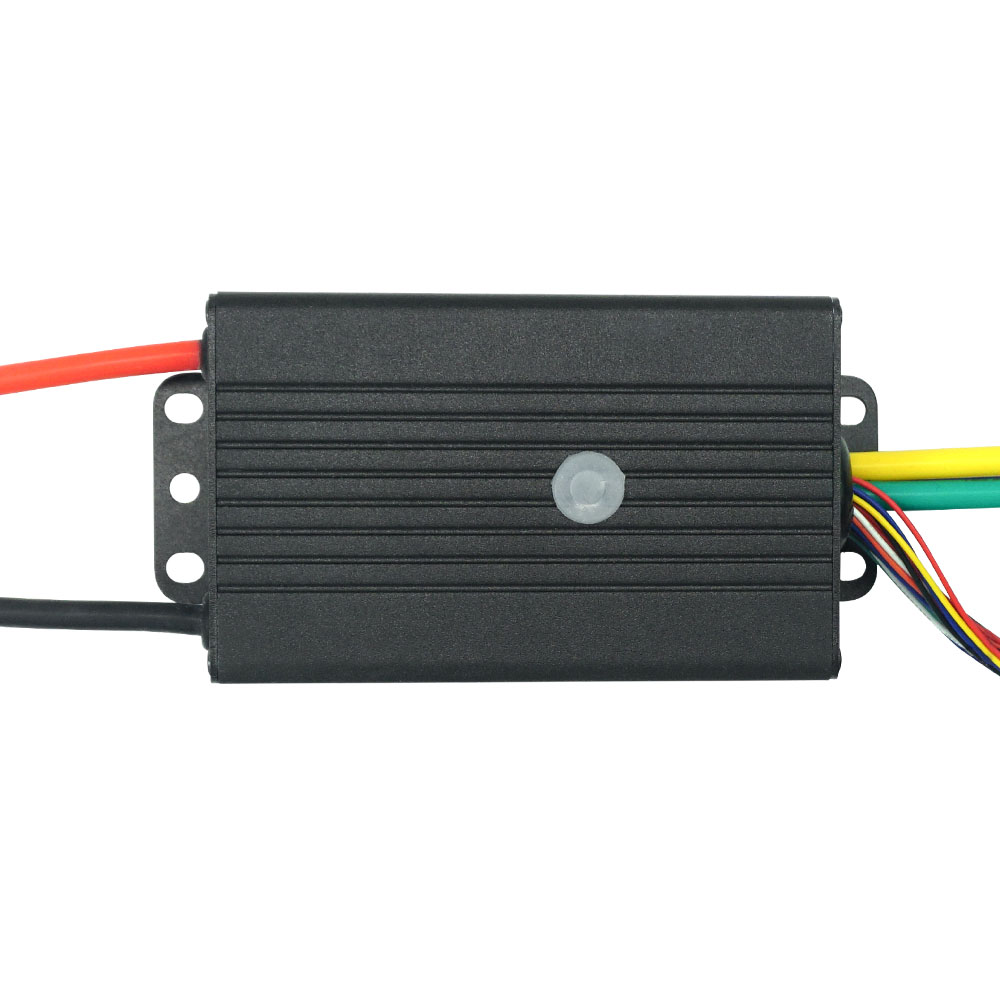

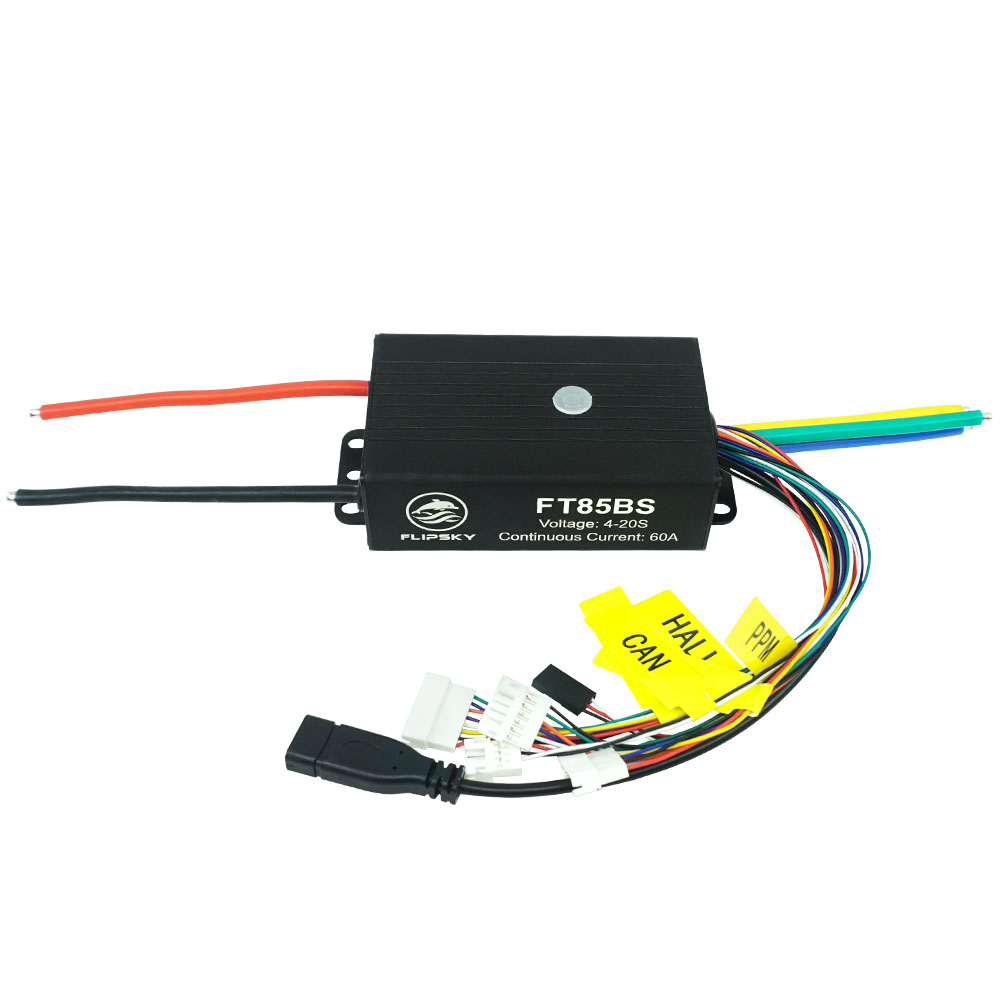

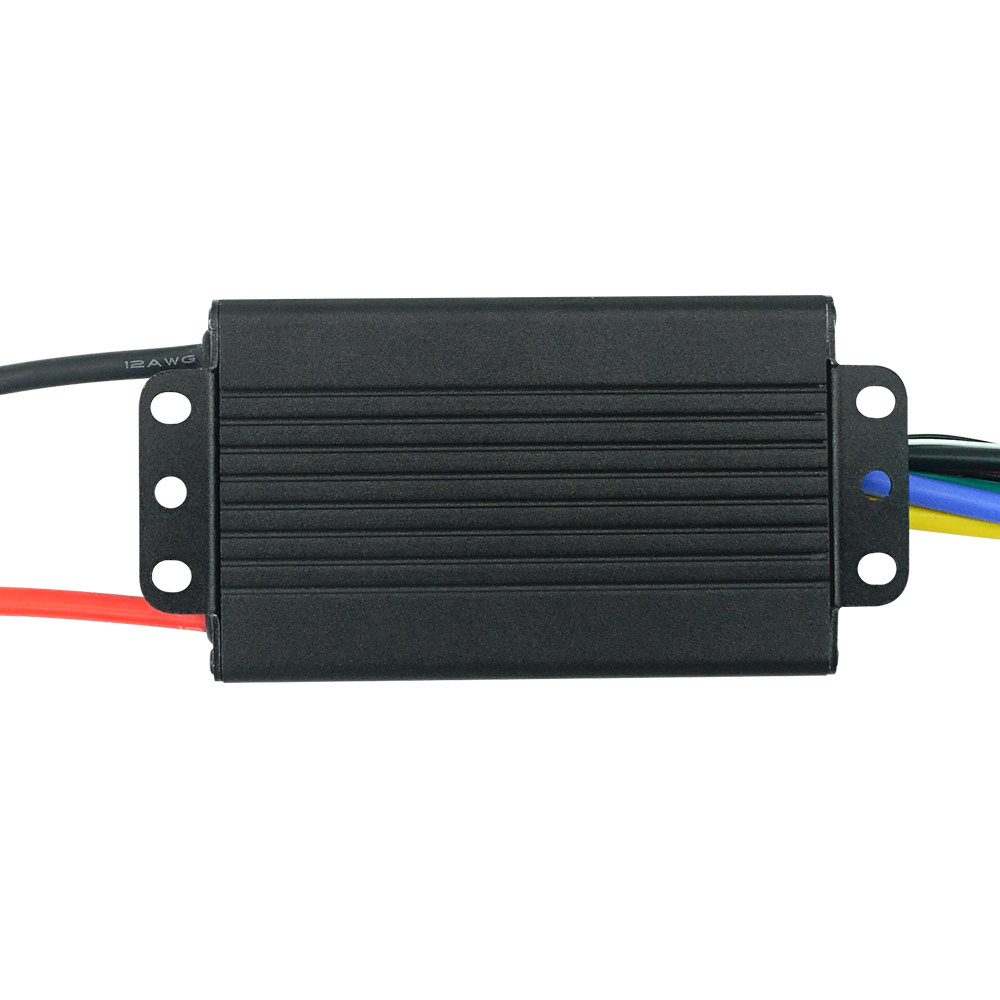

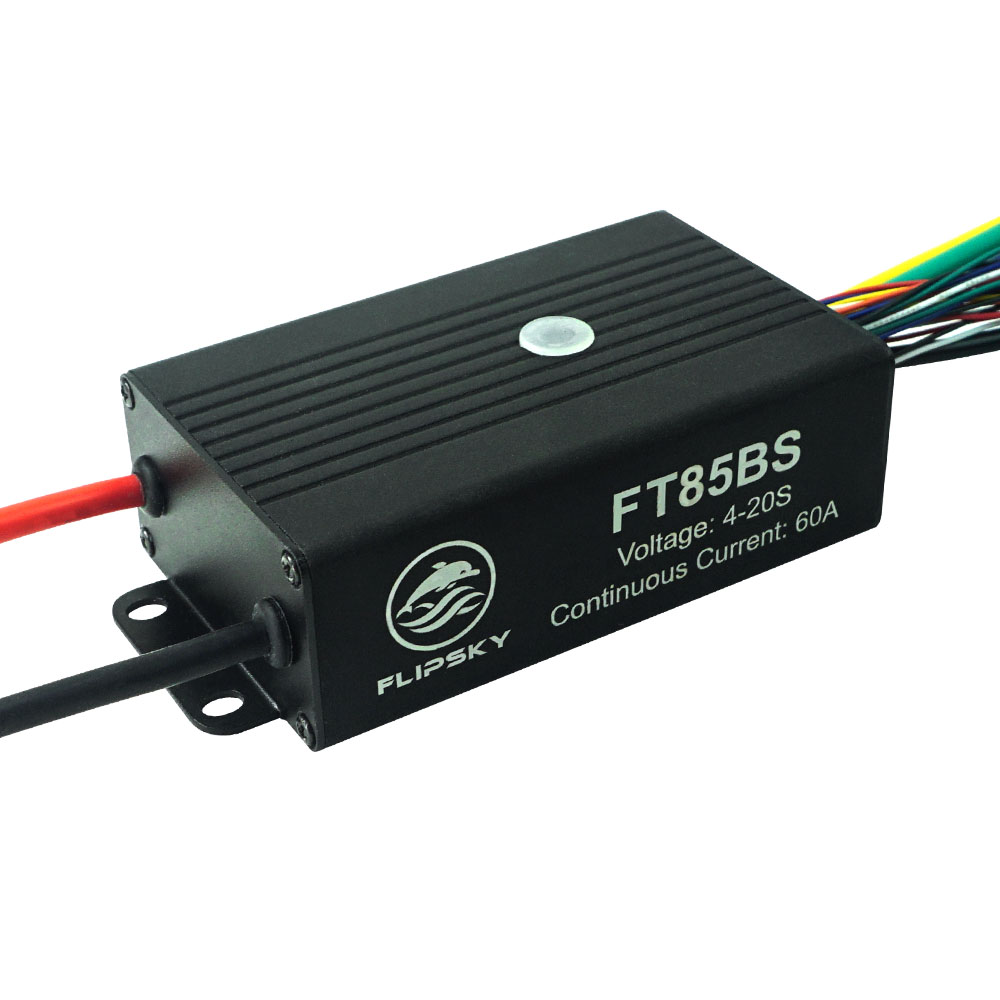

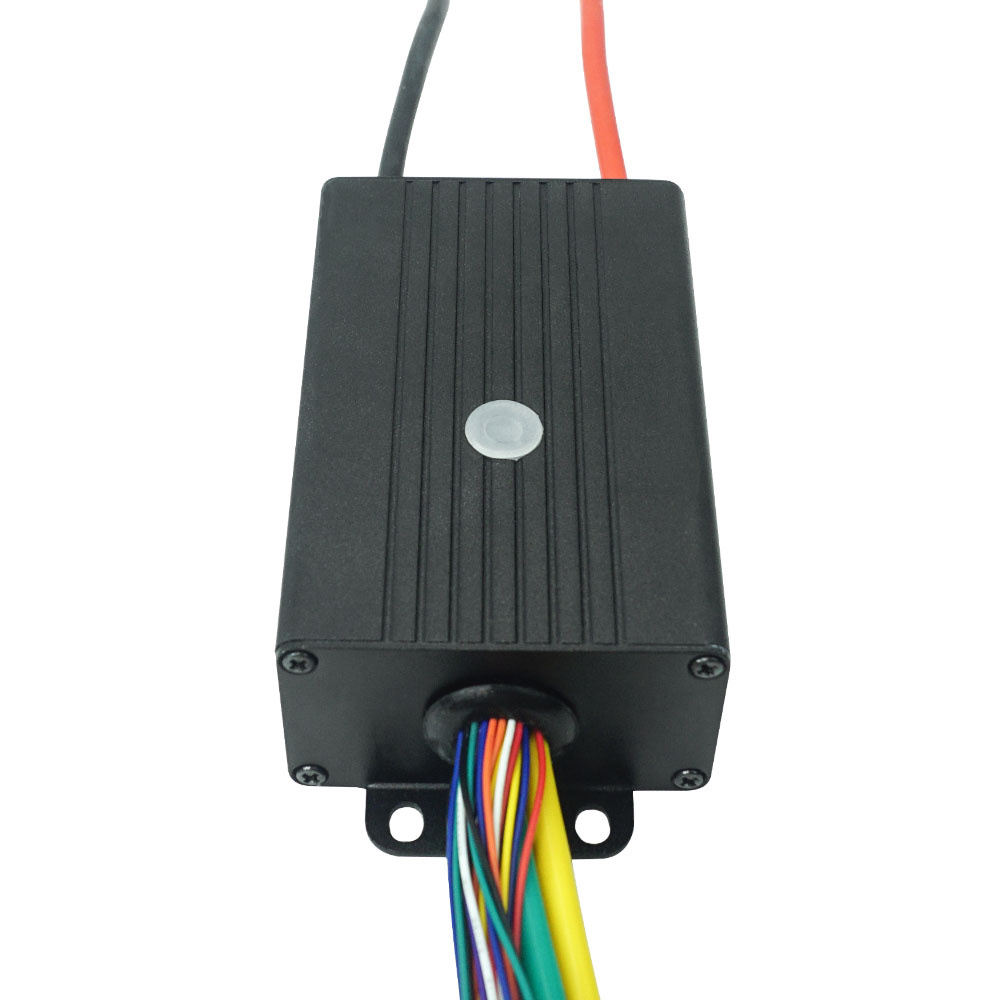

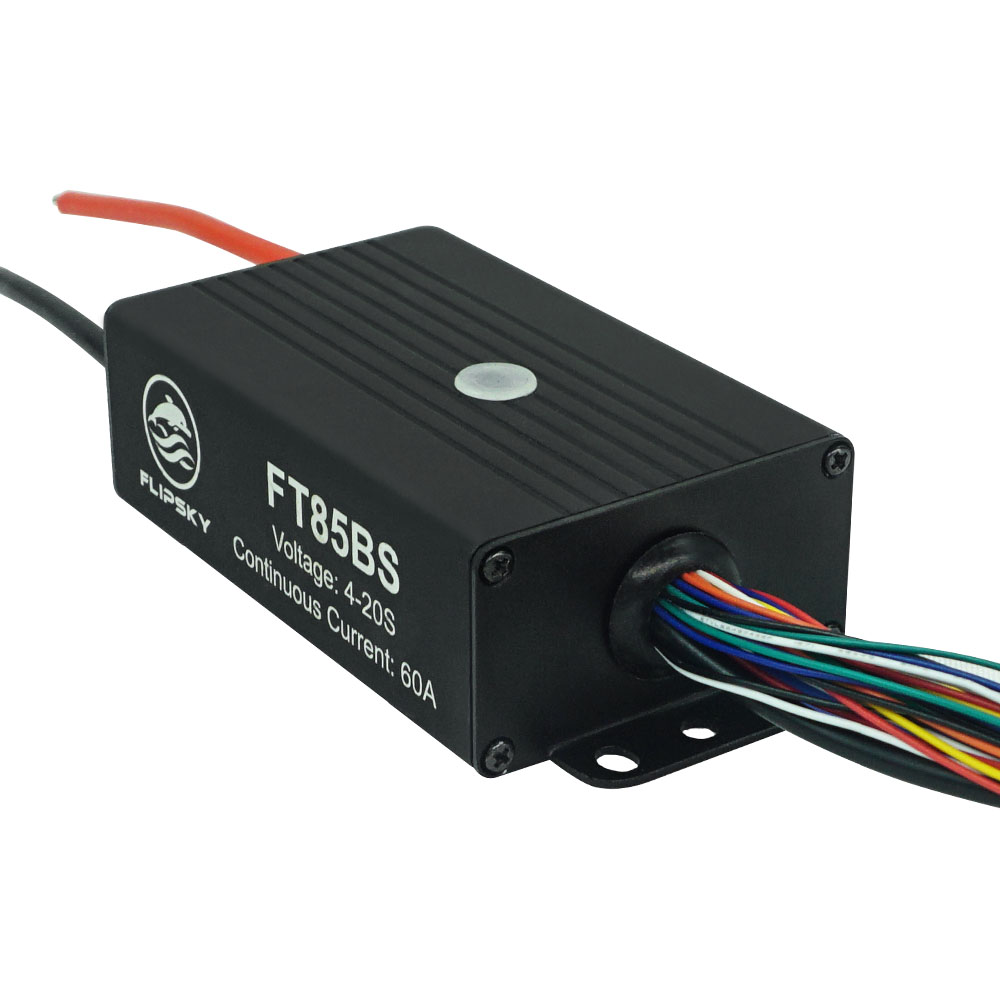

Flipsky 84V 60A ESC with Aluminum Case for Electric Skateboard Scooter Ebike Speed Controller Motorcycle Robotics FT85BS RC Car Models Parts
168,43 €
- Description
- Additional information
- Reviews (0)
- Vendor Details
- Product Inquiry
Description
Description:
Specifications:
Firmware:V1.0, support update via Flipsky ESC Tool
Voltage:14-84V (safe for 4-20S)
Continuous Current:50V/60A; 75V/50A; 84V/40A (values depend on mounting, environmental
Temperature and air/water circulation around the device!); Maximum current: 250A
Communication Ports:USB, CAN, UART
Input Signal Support:PPM, UART (only compatible with FLIPSKY remote VX4), ADC
BEC:5V @ 1A
Multiple Speed Levels:Low, medium, high, reverse
Motor/Power Wire Size:12 AWG
Programmable:Yes
Regenerative Capacity:Yes
Size:L110.5 * W55 * H30mm (Including Alu. Case)
Features:
Adopting AT32F403ARCT7 CPU with ARM Cortex-M4 structure enables faster CPU clock speed
240MHz and maximum PWM switching frequency 45KHz, which improves the motor RPM.
Programmable via Flipsky ESC Tool to be compatible with various motor types, different battery
Tensions and many ways of control.
Programmable via Flipsky VX4 remote (Firmware version: VX4_V1.2)
Supporting FOC with low working noise and smooth starting.
Supporting real-time data and fault alerts.
Support adaptive variable PWM frequency control.
Supporting sensor mode (HALL) and sensorless mode (IPDS, HFPI).
Supporting control types: Current, duty cycle
Protection functions: low and high voltage protection, overcurrent protection, temperature
Abnormal protection, MOSFETs over-temperature and over current protection, battery over
Discharge protecting, engine over temperature protection.
Attention:
FT85BS is NON-VESC design and supports Flipsky esc tool and VX4 remote control programming.
Package Included:
1X FT85BS
Additional information
| Weight | 0,5 kg |
|---|---|
| Type | FT85BS |
