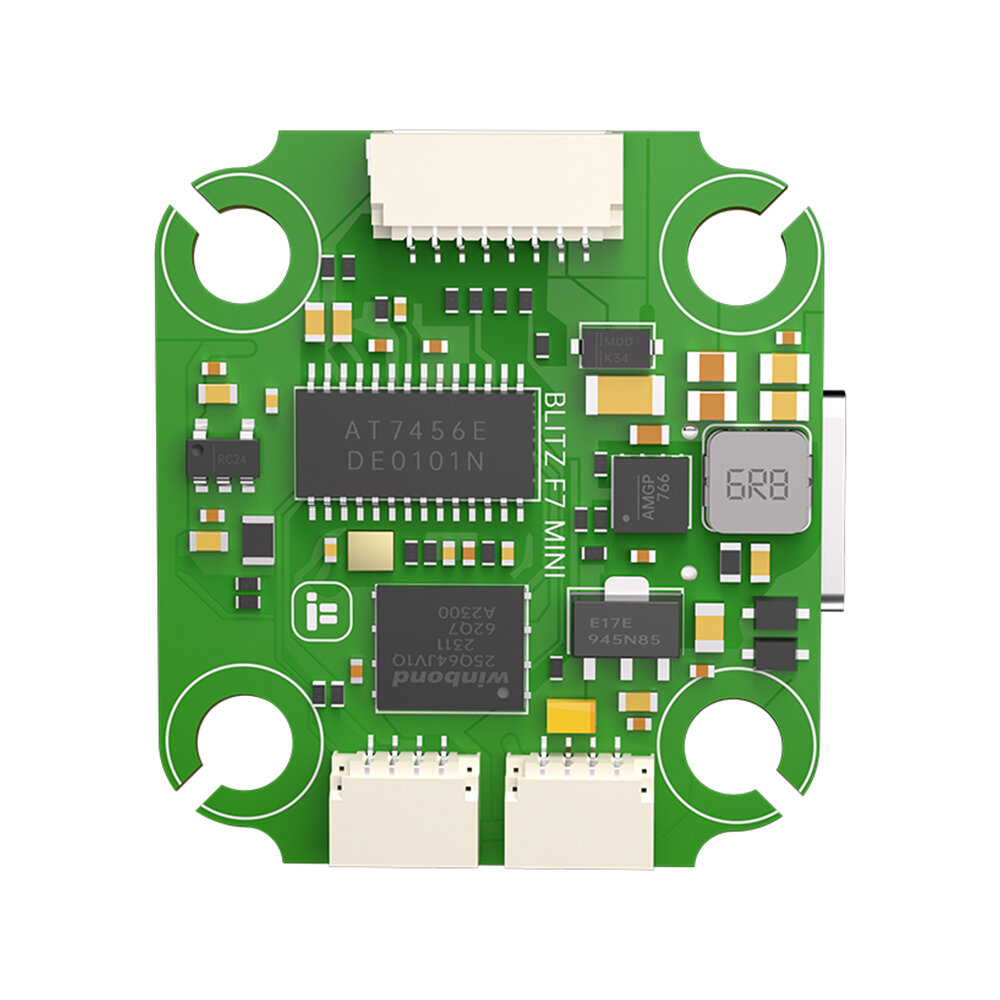

20x20mm iFlight BLITZ Mini F745 OSD Flight Controller with 5V BEC Output Support Betaflight Ardupilot
76,31 €
- Description
- Additional information
- Reviews (0)
- Vendor Details
- Product Inquiry
Description
Specifications:
Brand: iFlight
Model: BLITZ Mini F745
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware：arduplane_with_bl
Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Features:
1.Improved circuit design, better components, and lower electrical noise!
2.DJI HD VTX Connector (Plug-and-Play / No soldering required).
3.FC indicator LEDs for visual debugging.
4.Support Betaflight, INAV, Ardupilot firmware.
Package Included:
1 x BLITZ Mini F745 Flight Controller
Additional information
| Weight | 0,1 kg |
|---|---|
| Version | Flight Controller Module |
