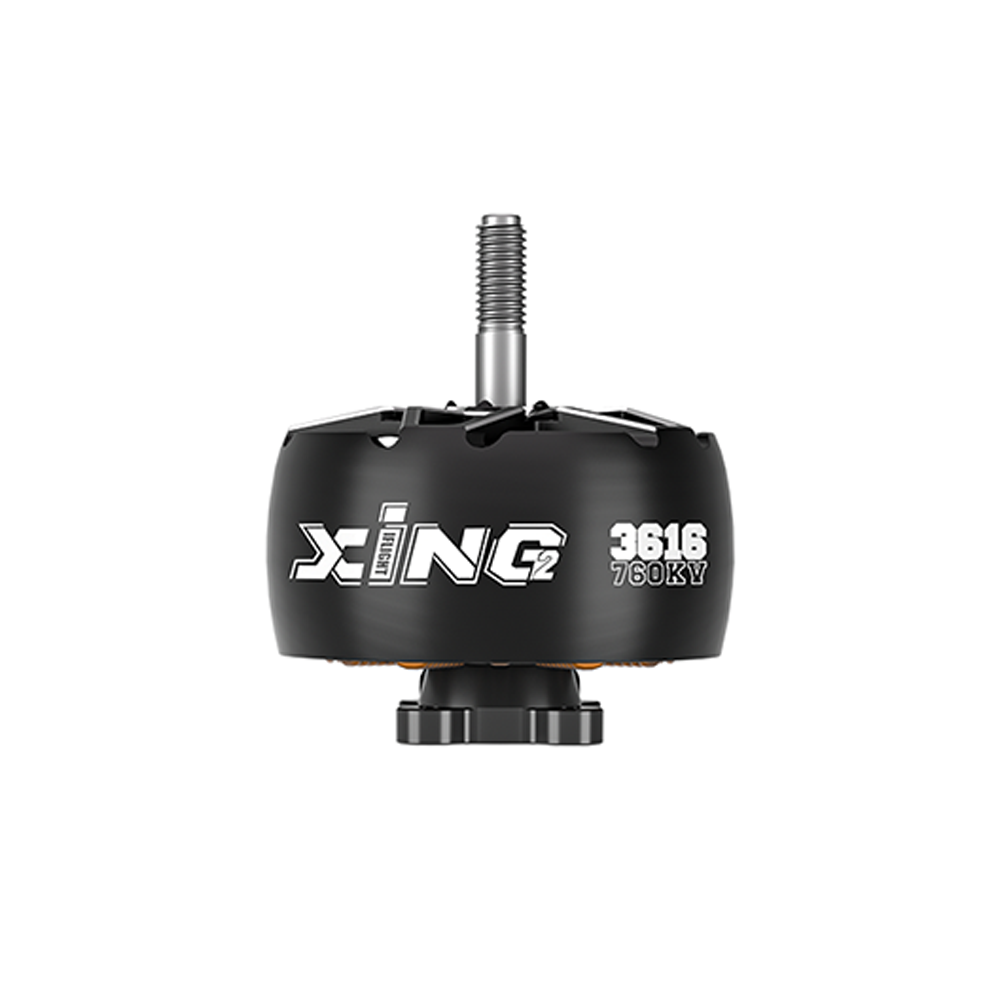

1PC/4PCS iFlight XING2 3616 760KV High Performance High Force Brushless Motor for RC FPV Racing Drone
81,49 €
- Description
- Additional information
- Reviews (0)
- Vendor Details
- Product Inquiry
Description
Features:
-Center slotted N52H curved arc magnets for reduced response time.
-Enhanced efficiency with a smaller air gap and higher magnetic flux.
-Durabl joint of bell and shaft optimized for peak performance.
-12N14P configuration for superior power and torque.
-Multi-strand copper winding for increased reliability and performance.
Specification:
Brand: iFlight
Model: XING2 3616
KV: 760KV
Weight(included wire): 166.3g
Dimension: Ф45.5*33mm
Interphase Resistance: 38.8mΩ
Input Volts: 32V
Peak Current: 78.57A
Max Watt: 2453W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 18mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK/NMB
Bearing Specification: φ12*6*4
Winding: Multi-strand copper winding
Packing included:
1 x XING2 3616 Brushless Motor
4 x M3x7 screws
1 x M5 Flange Nut
Additional information
| Weight | 0,001 kg |
|---|---|
| Mode | XING2 3616 760KV Motor |
